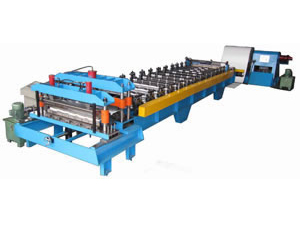

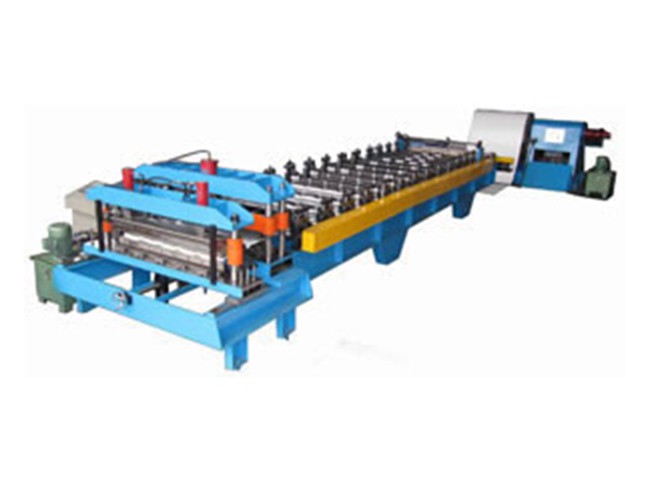

Color Steel Tile Roll Forming Machine

Inquiry Form

Profile:

Product Features of Color Steel Tile Roll Forming Machine:
The product of this roll forming machine features novel appearance, level surface, uniform ripple, high usage and automatization, low cost and durability.
Product Application of Color Steel Tile Roll Forming Machine:
The product of our color steel tile roll forming machine is widely used in civilian construction, such as plants, hangar, gymnasium, exhibition hall and theaters.
Technical Data of Color Steel Tile Roll Forming Machine:

Width of coil: 1000/1250mm
Thickness of raw plate: 0.4-0.8mm
Steps of rollers: 13-16 stations
Material of rollers: good 45# steel, rigid chrome coated
Material of roller shaft: good 45# steel
Material of pressing mould: GCr15
Material of cutting blade: Cr12
Depth of pitch: can be 15-20mm, one pressing mould for one depth
Main motor power: 4kW
Hydraulic motor power: 5.5kW
Hydraulic pressure: 10-12MPa
PLC control: PLC, touch screen, inverter and encoder are from Japan

Take your working efficiency and profits further with Zhenhuan roll forming machine, spiral duct forming machine, plasma cutting machine, welding machine etc.
