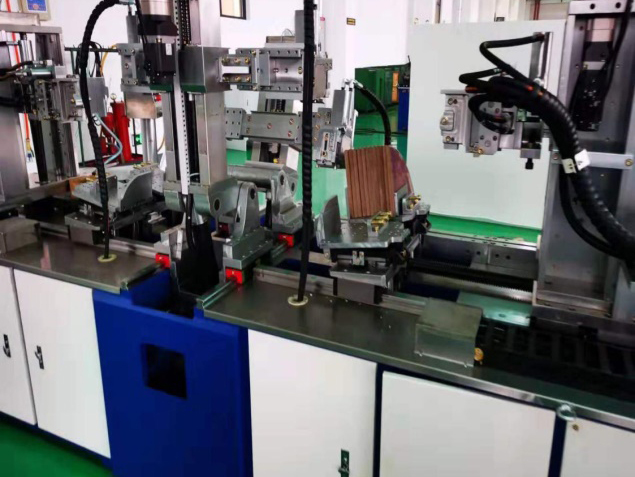

HV Motor Coil Spreading Machine

CNC Motor Coil Spreading & Forming Machine

Inquiry Form

We provide HV motor coil spreading machine for spreading & forming spindle-shaped coils from coil winding machine into exact shapes that are easy to insert into the stator slots of big size motors.

Main features
  • Large scope of application for different terminal shape, straight section length and coil section area
  • High forming precision, no need further re-ordering, applicable for both mass production and new prototype production
  • Full digital control, simply inputting parameters on HMI, intuitionistic and convenient
  • High precision, servo motor controls coil length, terminal height, arc angle and spreading gap
  • Easy to use, hydraulic clamping and arc pushing
  • Parameters can be saved and recalled for next time use
Main technical data
Item Data
Machine model ZWXT-2000 (customized）
Before spreading Coil length 800~2500mm
Straight section length 350~2000mm
Max. coil section area 30 x 70mm
Nose diameter 20mm, 30mm
After spreading 3D coil nose diameter 20mm, 30mm
3D coil nose section height 80~350mm
3D coil hypotenuse length 150~450mm
3D coil total length 700~2800
3D coil straight section length 300~1500mm
3D coil spreading width (span) 180-900mm
3D coil nose angle 0~30°
Angle between upper edge and center line 0~75°
Angle between lower edge and center line 0~75°
Spreading angle error ±0.5°
Spreading dimension error ±0.5mm
Span spreading speed 8-30 seconds to 800mm
Whole spreading cycle time 1~2 minutes
