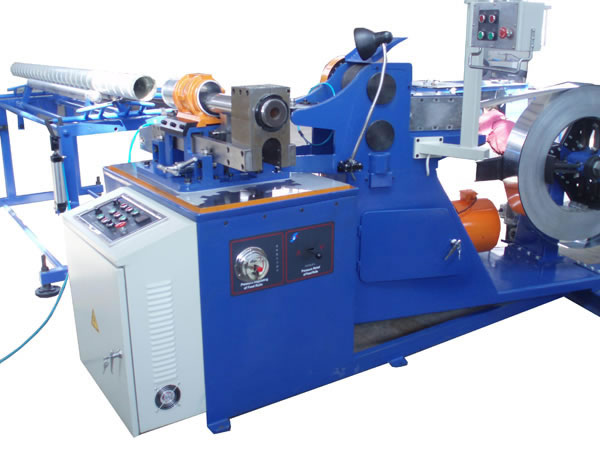

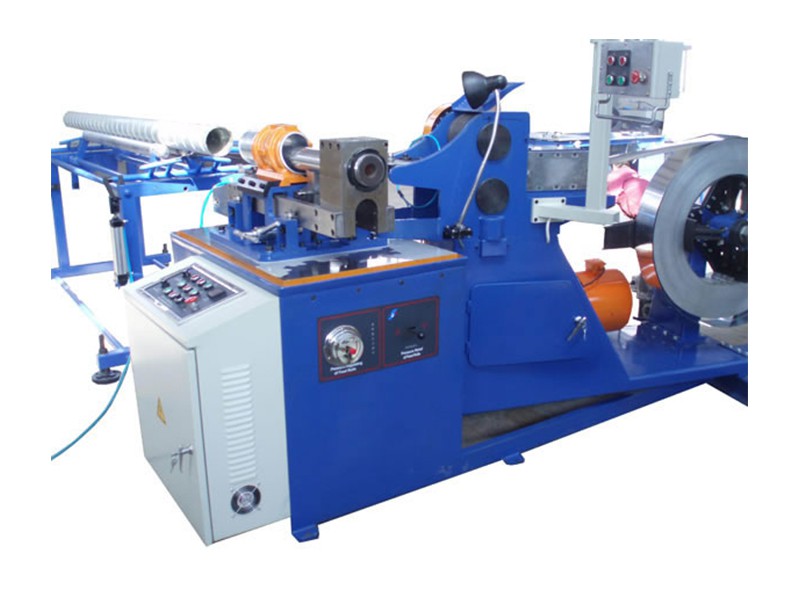

ZHTF-I Spiral Duct Forming Machine

This spiral duct forming machine, also called as spiral tubeformer or spiral ductformer, has similar technology to Tormec Switzerland.
Main Features of ZHTF-I Spiral Duct Forming Machine:
1 Special mould for various diameters, very easy to change and adjust, crane or too much manpower are not needed
2 Large diameter range
3 High speed synchro flying cutting system
4 PLC touch screen control, convenient operation
5 Light and small, suitable for site work
6 Perfect swage, without leakage
Main Technical Data of ZHTF-I Spiral Duct Forming Machine:
1 Diameter range: 85 - 1,500mm
2 Maximum tube length: unlimited
3 Thickness of strip: 0.4 - 1.0mm (by special requirement, it can be 1.5mm and even 2mm)
4 Width of strip: 137 - 140mm
5 Feeding speed: 1 - 38m/min
6 Suitable material: aluminum, stainless steel, galvanized steel, color steel
7 Dimensions (L x W x H): 3,500mm x 2,800mm x 2,580mm
8 Weight: 2,500kg
9 Main motor power: 5.5kW
10 Cutting motor power: 2.2kW
11 Pressure of pneumatic station: 8kgf/cm²
12 Control system: PLC and inverter are imported from Japan

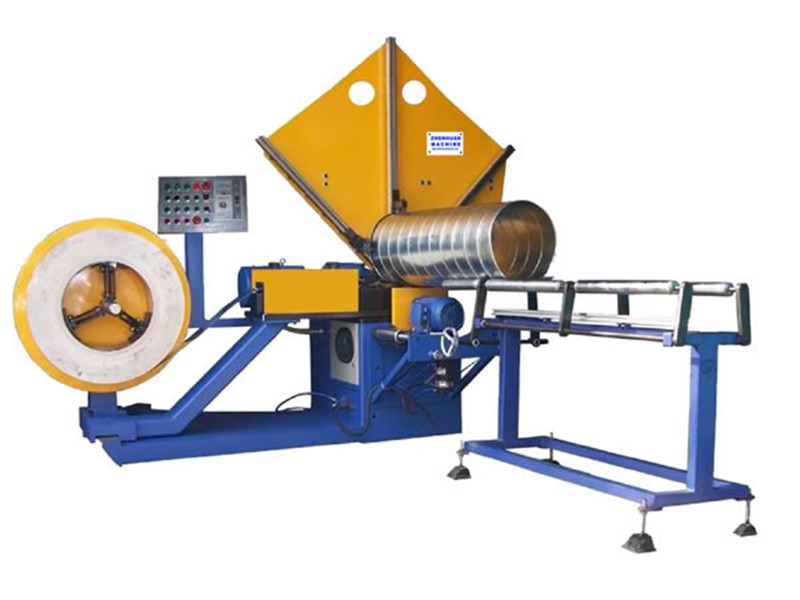

ZHTF-II Spiral Duct Forming Machine
The technology of this spiral duct forming machine is similar to Spiro Switzerland.
Main Features of ZHTF-II Spiral Duct Forming Machine:
1 Special aluminum alloy mould, light & durable
2 Round roller shear, without noise and burrs
3 Large diameter range
4 PLC control, convenient operation
5 Auto unloading rack, low labor cost
Main Technical Data of ZHTF-II Spiral Duct Forming Machine:
1 Diameter of round tubes: 150mm ~ 1400mm.
2 Max. tube length: 8000mm.
3 Thickness of strip: 0.6 ~ 1.0mm
4 Width of strip: 137mm ~ 140mm
5 Strip speed: 1~35m/min, adjustable
6 Suitable strip material: aluminum, stainless steel, galvanized steel, color coated steel, etc.
7 Weight: 2500kg
8 Power of main motor: 11kw
9 Power of hydraulic motor: 4kw
10 Power of cooling water pump motor: 125W
11 Power of material feeding motor: 125W
Zhenhuan supplies high quality roll forming machine, spiral duct forming machine, plasma cutting machine, welding machine etc. for global customers.
