Lead-acid Battery Heat Sealing Machine

Inquiry Form

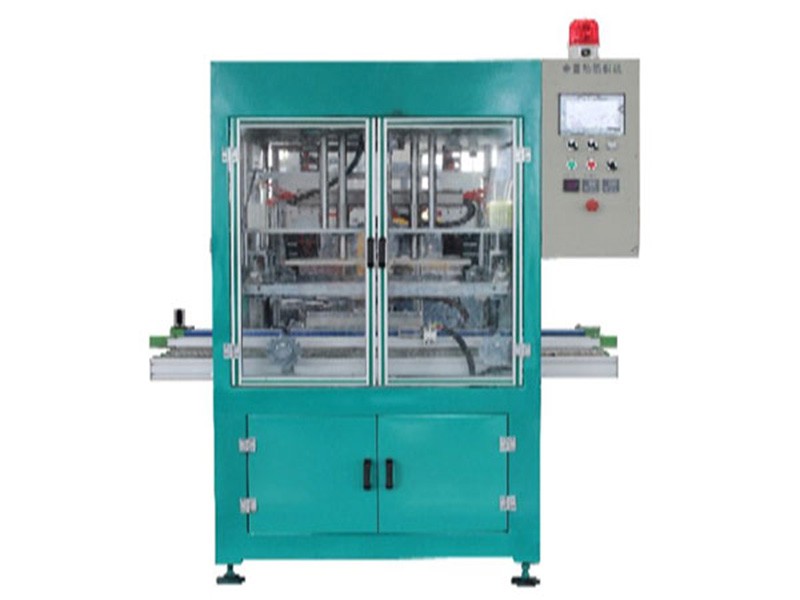

This lead-acid battery machinery is used for heat sealing the top cover to the battery container. It features PLC control and HMI operation, realizing automatic feeding, positioning, sealing and discharging.

Main Features

  • Fully enclosed working condition
  • High level of automation
  • Comes with pre-heating function, and timer-controlled heating
  • Working parameters can be stored, recalled and re-edited.
  • Features force-air cooling system

Main Technical Specifications

Item Specifications
Heat sealing die temperature Max. 350℃
Temperature control error ≤±2℃
Temperature measuring error ≤±0.5℃
Heating duration from 25℃ to 350℃ Less than 30 minutes
Melting time 0.1~99.9 seconds, adjustable
Sealing time 0~99 seconds, adjustable
Melting depth 2.5mm
Battery height ultimate error after sealing ≤0.5mm
Sealing efficiency 300 batteries/h (at 100AH/12V)
Total electric power 8kW
Air supply 0.4~0.8MPa, 6.8L/min
Machine dimension 1550 x 1200 x 2100mm
Machine weight 500kg
