Automatic Battery Terminal Welder

Inquiry Form

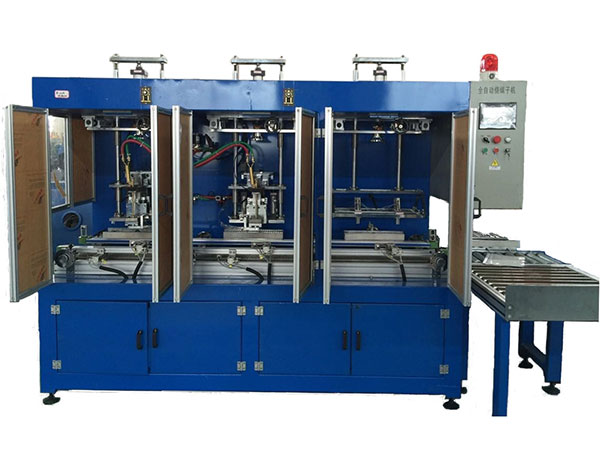

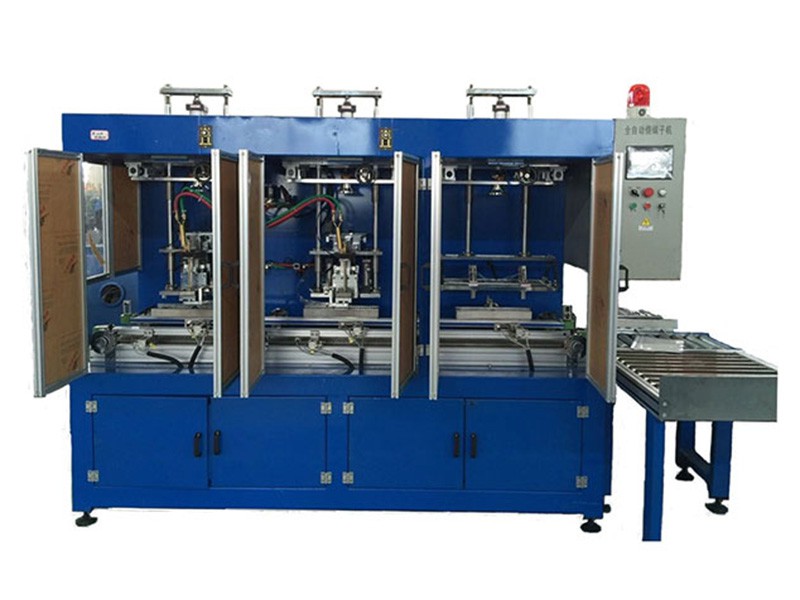

This automatic battery terminal welding machine is used for welding positive and negative terminals of lead-acid battery.

Main Features

  • Requires no additional lead, and no lead peels after welding
  • Working parameters of welding torches are set on HMI
  • Fully enclosed working condition
  • Detects terminal height, and rejects batteries with terminal height error in a fully automatic manner
  • Features PLC control and HMI operation

Main Technical Specifications

Item Specifications
Applicable terminal design 1 x 6 or 2 x 3
Terminal height error +1mm
Welding depth ≥5mm
Welding speed 300 batteries per hour
Total electric power 2.5kW
Working height 680mm
Air source 0.4~0.8MPa, 7L/min
Ethyne source 0.15MPa, 1.3L/min
Oxygen source 0.3MPa, 4L/min
Cooling water source 0.2MPa, 2.5L/min
